Description

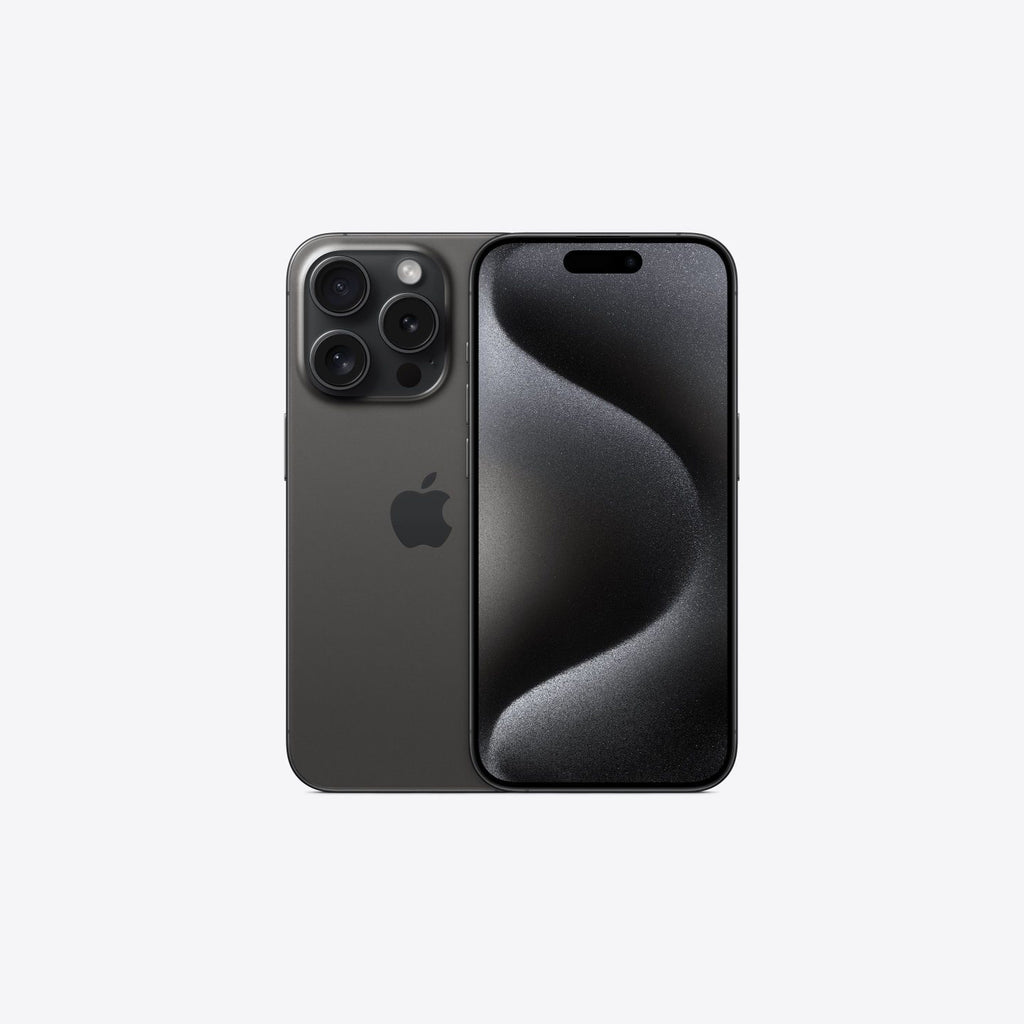

iPhone 15 Pro A3102
The iPhone 15 Pro A3102 is the global edition, available extensively in regions like South America, Asia, Europe, Africa, the UK, and Australia. This model supports Dual SIM (nano‑SIM and eSIM) and also offers Dual eSIM capabilities. However, it’s important to highlight that when used in Korea, this variant still produces the camera shutter sound for photos taken within the country.
Network
Technology :
GSM / CDMA / HSPA / EVDO / LTE / 5G
2G bands :
GSM 850 / 900 / 1800 / 1900
CDMA 800 / 1900
3G bands :
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
CDMA2000 1xEV-DO
4G bands :
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 53, 66 - A3102
1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 53, 66, 71 - A2848
1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 53, 66, 71 - A3101
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66 - A3104
5G bands :
1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 53, 66, 70, 77, 78, 79 SA/NSA/Sub6 - A3102
1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 77, 78, 79, 258, 260, 261 SA/NSA/Sub6/mmWave - A2848
1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 75, 76, 77, 78, 79 SA/NSA/Sub6 - A3101
1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 66, 70, 77, 78, 79 SA/NSA/Sub6 - A3104
Speed :
HSPA, LTE, 5G, EV-DO Rev.A 3.1 Mbps
Launch
Announced :
2023, September 12
Status :
Available. Released 2023, September 22
Body
Dimensions :
146.6 x 70.6 x 8.3 mm (5.77 x 2.78 x 0.33 in)
Weight :
187 g (6.60 oz)
Build :
Glass front, glass back, titanium frame (grade 5)
SIM :
Nano-SIM + eSIM + eSIM (max 2 at a time; International)eSIM + eSIM (8 or more, max 2 at a time; USA)Nano-SIM + Nano-SIM (China)
IP68 dust tight and water resistant (immersible up to 6m for 30 min) Apple Pay (Visa, MasterCard, AMEX certified)
Display
Type :
LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision, 1000 nits (typ), 2000 nits (HBM)
Size :
6.1 inches, 91.3 cm2 (~88.2% screen-to-body ratio)
Resolution :
1179 x 2556 pixels, 19.5:9 ratio (~461 ppi density)
Protection :
Ceramic Shield glass
Always-On display
Platform
iOS 17, upgradable to iOS 18.4
Chipset :
Apple A17 Pro (3 nm)
CPU :
Hexa-core (2x3.78 GHz + 4x2.11 GHz)
GPU :
Apple GPU (6-core graphics)
Memory
Card slot :
No
Internal :
128GB 8GB RAM, 256GB 8GB RAM, 512GB 8GB RAM, 1TB 8GB RAM
NVMe
Main Camera
Triple :
48 MP, f/1.8, 24mm (wide), 1/1.28", 1.22µm, dual pixel PDAF, sensor-shift OIS 12 MP, f/2.8, 77mm (telephoto), 1/3.5", 1.0µm, PDAF, OIS, 3x optical zoom 12 MP, f/2.2, 13mm, 120˚ (ultrawide), 1/2.55", 1.4µm, dual pixel PDAF TOF 3D LiDAR scanner (depth)
Features :
Dual-LED dual-tone flash, HDR (photo/panorama)
Video :
4K@24/25/30/60fps, 1080p@25/30/60/120/240fps, 10-bit HDR, Dolby Vision HDR (up to 60fps), ProRes, 3D (spatial) video, stereo sound rec.
Selfie camera
Single :
12 MP, f/1.9, 23mm (wide), 1/3.6", 1.0µm, PDAF, OIS SL 3D, (depth/biometrics sensor)
Features :
HDR, Dolby Vision HDR
Video :
4K@24/25/30/60fps, 1080p@25/30/60/120fps, gyro-EIS
Sound
Loudspeaker :
Yes, with stereo speakers
3.5mm jack :
No
Comms
WLAN :
Wi-Fi 802.11 a/b/g/n/ac/6e, tri-band, hotspot
Bluetooth :
5.3, A2DP, LE
Positioning :
GPS (L1+L5), GLONASS, GALILEO, BDS, QZSS, NavIC
NFC :
Yes
Radio :
No
USB :
USB Type-C 3.2 Gen 2, DisplayPort
Features
Sensors :
Face ID, accelerometer, gyro, proximity, compass, barometer
Ultra Wideband (UWB) support (gen2 chip) Emergency SOS, Messages and Find My via satellite
Battery
Type :
Li-Ion 3274 mAh
Charging :
Wired, PD2.0, 50% in 30 min 15W wireless (MagSafe) 15W wireless (Qi2) - requires iOS 17.2 update 4.5W reverse wired
Misc
Colors :
Black Titanium, White Titanium, Blue Titanium, Natural Titanium
Models :
A2848, A3101, A3102, A3104, iPhone16,1
SAR :
1.14 W/kg (head) 1.16 W/kg (body)
SAR EU :
0.98 W/kg (head) 0.98 W/kg (body)
Tests
Display :
1786 nits max brightness (measured)
Camera :
Photo / Video
Loudspeaker :
-26.4 LUFS (Good)
Battery (new) :
Active use score 12:58h
Battery (old) :
Endurance rating 86h
